Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC

Name: Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC
Brand: Zaozhuang NO.1
Price: 24000 USD

China Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC wholesale

Brand Name : Zaozhuang NO.1

Model Number : XK6140

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 24000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size : 1700x400mm

X/Y/Z–axis travel : 1000x330x400mm

Spindle Taper : ISO:50/7:24

Spindle speed range (series) : 30-1500/18

Table rotation angle (optional) : ±45°

T-groove : 3-18-90

Main motor power : 11kw

Contact Now

High Quality Horizontal Cnc Metal Milling Machine XK6140 Fresadora Cnc

Product Description:

The XK6140 is a high-performance horizontal CNC milling machine featuring a sturdy bed structure, ensuring stable machining. Equipped with a CNC system and supporting three-axis linkage, it is suitable for milling, boring, and drilling complex housings, gears, and other large parts.

Standard Configuration:

1. Guangtai 130 system

2.Three axis CNC

3.Manual transmission of spindle

4.Electronicoil pump

5.Three-axis hard rail

Optional Configuration:

1. System :GSK,KND

2.Pneumatic broach

3.CNC dividing head

4.Top Tailstock

5.Fully protected sheet metal

6.The table rotates

Product Specification:

  	 			PARAMETER ITEM
 			UNIT
 			XK6132
 			XK6140

 			Size of worktable
 			mm
 			1500x320
 			1700x400

 			Table travel
 			mm
 			900x310x410
 			1000x330x400

 			T-groove
 			mm
 			3-14-70
 			3-18-90

 			Spindle Taper
 			-
 			ISO:50/7:24
 			ISO:50/7:24

 			Table rotation angle (optional)
 			.
 			±45°
 			±45°

 			Distance between spindle end face and table top
 			mm
 			20-370
 			30-410

 			Bed Vertical Guide to the spindle center line distance
 			mm
 			225-505
 			275-625

 			Spindle speed range(series)
 			rpm
 			30-1500/18
 			30-1500/18

 			Fast moving speed(x/y/z)
 			mm/min
 			6000/6000/3000
 			6000/3000/6000

 			Positioning accuracy
 			mm
 			0.020/300
 			0.05/300

 			Repeat positioning accuracy
 			mm
 			0.010/300
 			0.025/300

 			Main Drive motor power
 			kw
 			7.5
 			11

 			Coolingpump motor power
 			kw
 			0.125
 			0.125

 			Extemnal dimensions
 			mm
 			2272x1825x2094
 			3310x2200x2394

 			Weight of machine tool
 			kg
 			2850
 			4250

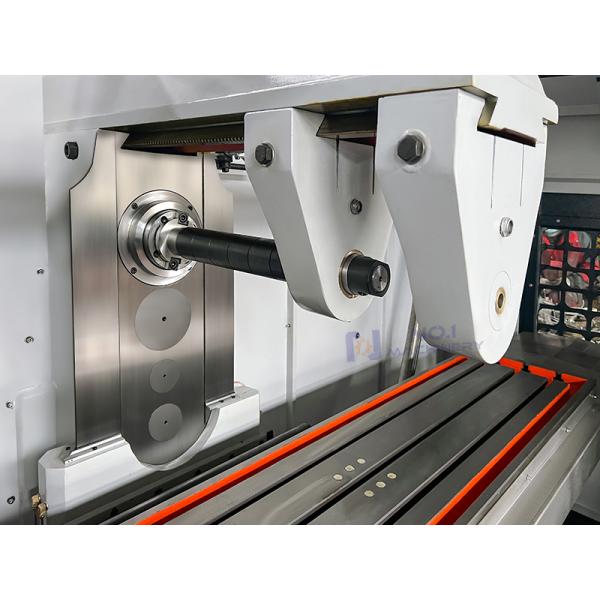

Details Display:

Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC

Product Tags:

Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC

Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC

Horizontal metal milling cnc machine

XK6140 metal milling cnc machine

Fresadora metal milling machine cnc

Horizontal Metal Milling CNC Machine XK6140 Fresadora CNC Images

PARAMETER ITEM	UNIT	XK6132	XK6140
Size of worktable	mm	1500x320	1700x400
Table travel	mm	900x310x410	1000x330x400
T-groove	mm	3-14-70	3-18-90
Spindle Taper	-	ISO:50/7:24	ISO:50/7:24
Table rotation angle (optional)	.	±45°	±45°
Distance between spindle end face and table top	mm	20-370	30-410
Bed Vertical Guide to the spindle center line distance	mm	225-505	275-625
Spindle speed range(series)	rpm	30-1500/18	30-1500/18
Fast moving speed(x/y/z)	mm/min	6000/6000/3000	6000/3000/6000
Positioning accuracy	mm	0.020/300	0.05/300
Repeat positioning accuracy	mm	0.010/300	0.025/300
Main Drive motor power	kw	7.5	11
Coolingpump motor power	kw	0.125	0.125
Extemnal dimensions	mm	2272x1825x2094	3310x2200x2394
Weight of machine tool	kg	2850	4250
